What Size Charge Controller Do You Need for an 800W Solar Panel System?

Choosing the right charge controller for an 800W solar panel system is crucial for system efficiency, battery lifespan, and long-term stability—especially in off-grid setups such as RVs, cabins, small homes, boats, and remote equipment.

The correct controller size depends on:

• Battery voltage (12V / 24V / 48V)

• Controller type (PWM vs. MPPT)

• Solar panel configuration

• Temperature conditions

• Future expansion plans

Below is a complete guide to help you pick the most suitable controller for an 800W array.

Quick Guide

• Best type of controller: MPPT (high efficiency, supports high-voltage PV)

• 12V battery system: 60A–80A MPPT

• 24V battery system: 30A–40A MPPT

• 48V battery system: 20A MPPT (minimum)

Why MPPT Controllers Are Best for an 800W Solar Array

For an 800W system, especially one built using four 200W panels, the solar array voltage is usually much higher than the charging voltage of the battery bank. Because of this, an MPPT controller offers significant advantages.

MPPT Advantages for 800W Arrays

• Converts excess PV voltage into additional charging current

• Up to 98% efficiency (ideal for higher voltage strings)

• Works perfectly with long-series PV configurations

• Improves performance in cold or cloudy environments

• Allows smaller cable sizes thanks to higher input voltage

In contrast, a PWM controller can only pull voltage down to battery level, wasting the extra voltage entirely. This makes PWM unsuitable for most 800W systems.

How to Calculate the Right Charge Controller Size

The basic formula:

Current (A) = Solar Watts ÷ Battery Voltage

To ensure safe operation, add a 20–25% safety margin for cold weather, panel overproduction, and long-term reliability.

Charge Controller Size for Different Battery Voltages

1. 12V Battery System

800W ÷ 12V = 66.6A

A suitable MPPT controller size:

Recommended: 60A – 80A MPPT

Why choose a larger controller?

• Handles peak current in cold weather

• Supports future panel expansion

• Prevents overheating during long daily charge cycles

Recommended Yingke Model

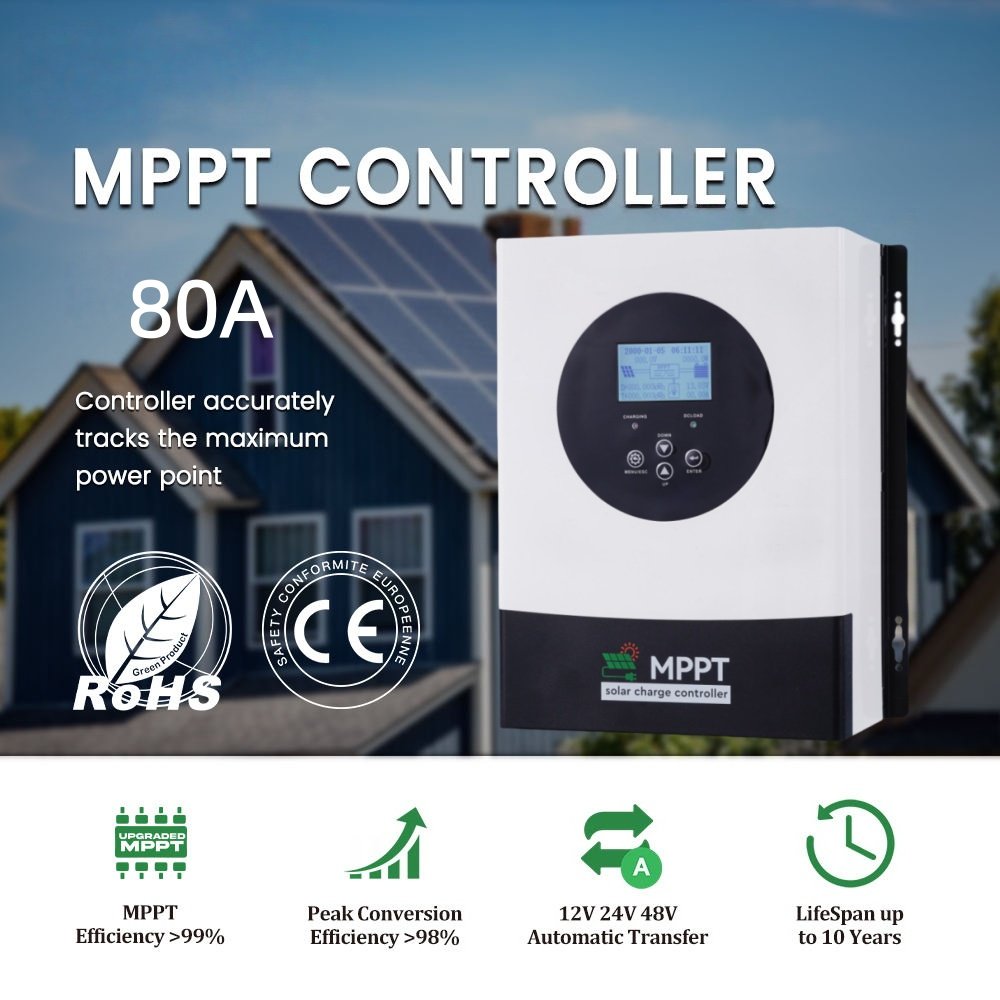

🔧 MPPT Solar Charge Controller 80A (12V–48V Auto-Recognition)
Image Placeholder

• Up to 98% efficiency

• LCD display

• Lithium battery activation

• RS485 communication

• Ideal for off-grid homes, RVs, and small power systems

2. 24V Battery System

800W ÷ 24V = 33.3A

A 24V system cuts current in half, reducing cable loss and installation costs.

Recommended: 30A – 40A MPPT

This is the most common and efficient pairing for an 800W array.

Recommended Yingke Model

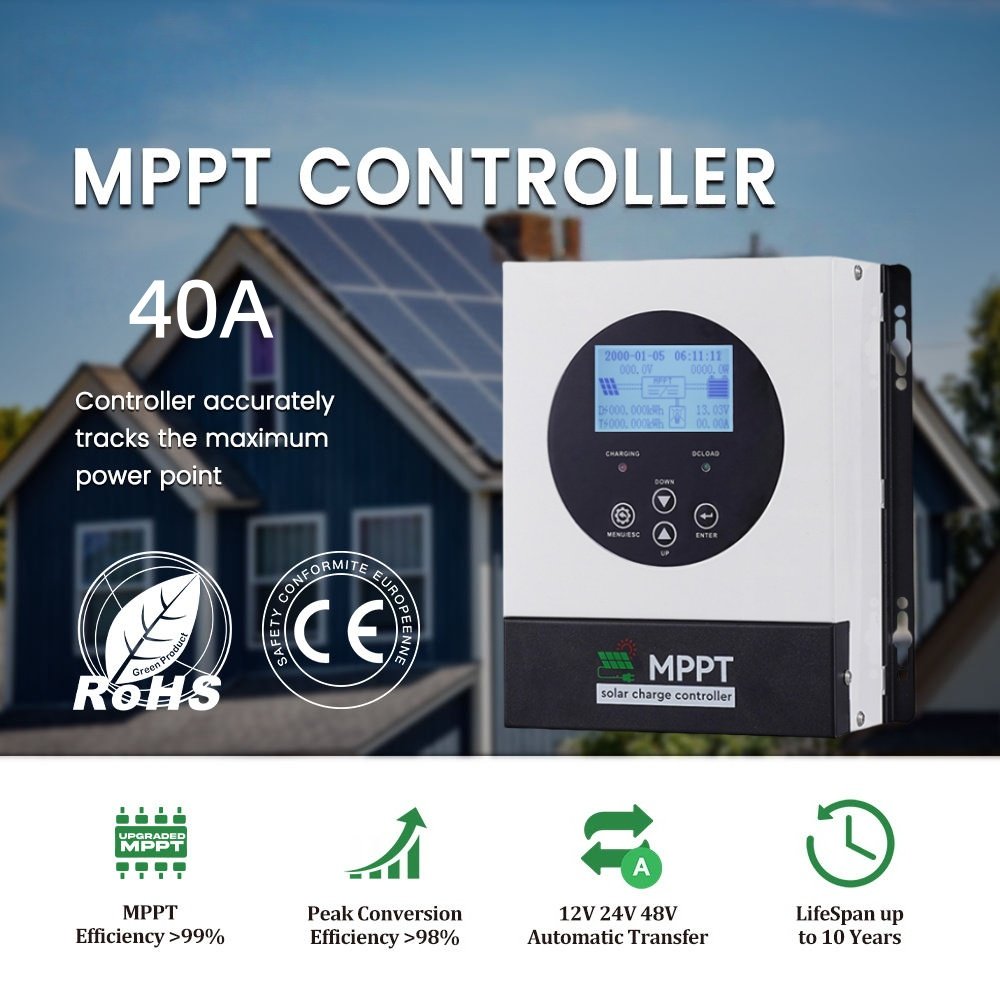

🔧 MPPT Solar Charge Controller 40A (12V–48V Auto-Recognition)
Image Placeholder

• Smart controls + temperature compensation

• Supports lead-acid & lithium batteries

• Ideal for cabins, RVs, and small off-grid systems

3. 48V Battery System

800W ÷ 48V = 16.6A

48V systems run extremely efficiently, but most commercial controllers start at 40A or higher because these systems typically handle bigger loads.

Recommended: Minimum 20A MPPT

If 20A models are unavailable, installers usually select a 30–40A controller to allow future upgrades.

Recommended Yingke Model

🔧 MPPT Solar Charge Controller 30A/40A/60A (48V Compatible)
Image Placeholder

• Higher voltage support

• Suitable for homes and small commercial setups

• High reliability for long-term off-grid operation

Important Factors to Consider When Selecting Your Charge Controller

1. Temperature & Overpower Margin

Panels can exceed their rated wattage during:

• Cold weather

• Windy conditions

• Bright winter sunlight

• Reflective surfaces (snow, metal roofs)

Adding 20–25% extra capacity prevents overload and extends product life.

2. Future System Expansion

If you plan to grow your solar array later, choose a controller that gives headroom. For example:

• Start with 800W

• Expand later to 1000W–1500W

• Avoid replacing your controller

Yingke controllers support parallel operation if more amps are needed.

3. Battery Compatibility

A good MPPT should support:

• Lead-acid (AGM, GEL, Flooded)

• Lithium (LiFePO4)

• Customizable charging settings

All Yingke MPPT models provide full compatibility + lithium activation.

Summary Table: Charge Controller Size for 800W Solar Panels

---

Recommended Yingke MPPT Controllers for 800W Systems

80A MPPT Solar Charge Controller (12V–48V)

• Up to 98% efficiency

• Supports lithium & lead-acid batteries

• Real-time LCD monitoring

• RS485 & smart control

40A MPPT Solar Charge Controller (12V–48V)

• Ideal for 24V 800W systems

• High reliability & smart temp compensation

• Best balance of cost and performance

60A MPPT Solar Charge Controller

• Suitable for future system expansion

• Widely used in residential & industrial off-grid systems

Looking for MPPT Charge Controllers for Your 800W Solar System?

Yingke is a professional solar products manufacturer with 13+ years of experience, offering MPPT controllers from 20A to 150A, supporting worldwide distributors and OEM projects.

If you’re looking for wholesale pricing or distributor opportunities:

📧 admin@yingketechs.com
💬 Contact us for quotes, OEM/ODM services, or bulk orders.
